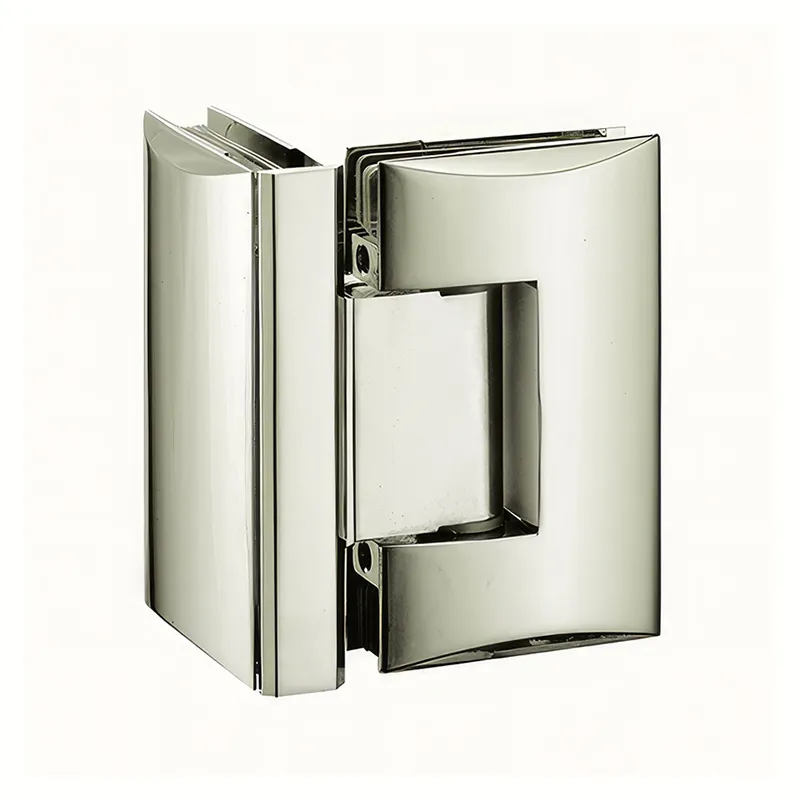

SHS690 Standard Duty 90° Beveled Corner Shower Door Hinge
The SHS690 is a standard-duty 90° shower door hinge with a beveled corner profile. It is designed for frameless shower enclosures where a moving glass door connects to a fixed glass panel at a 90° angle.
The beveled corner profile gives the hinge a clean, angular exterior appearance for 90° glass-to-glass shower door configurations.
90° Glass-to-Glass Configuration

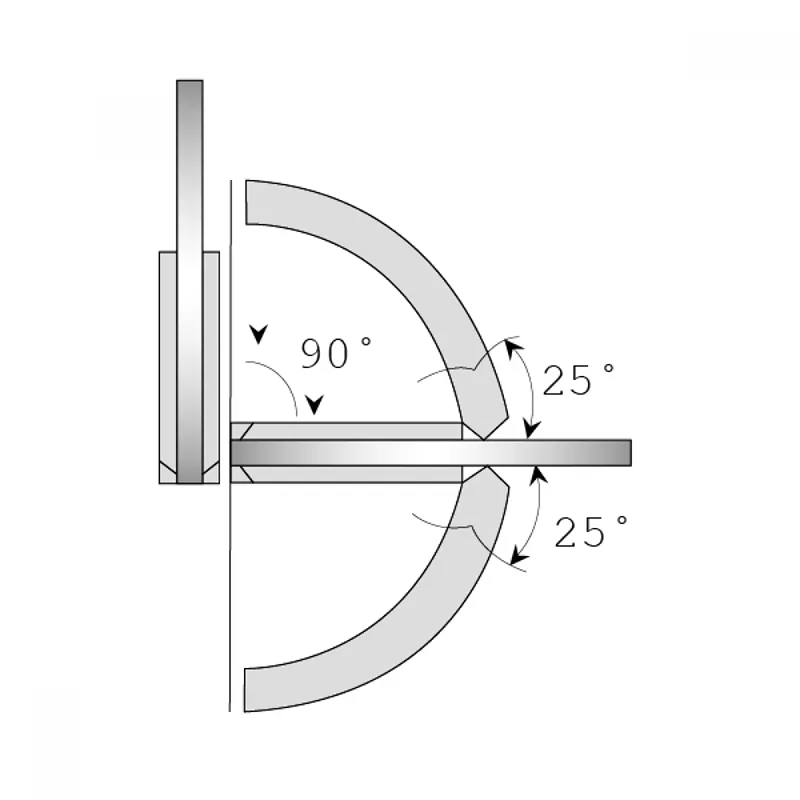

SHS690 is designed for glass-to-glass shower door installation where the moving door and fixed glass panel meet at 90°.
Glass position, cut-out and hinge quantity should be confirmed together before fabrication.
Closing Performance
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS690
- Application: Glass-to-Glass
- Mounting Angle: 90°
- Profile: Beveled Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 10–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 90 lb; 3 hinges / 130 lb
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
- Accessories: Gaskets, stainless steel mounting screws and Allen wrench
Glass Cut-Out and Installation

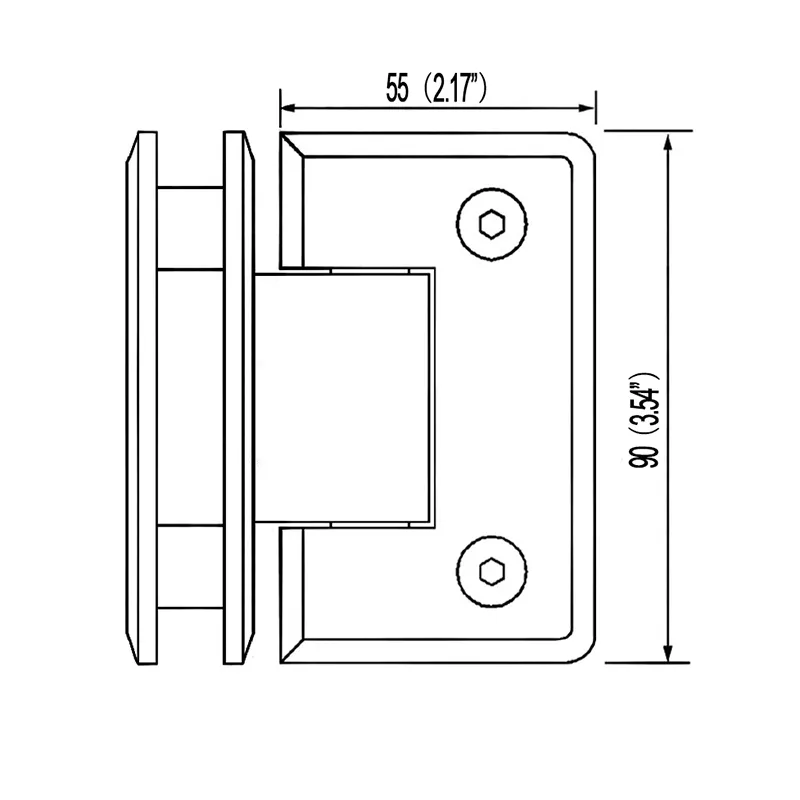

Use the SHS690 technical drawing to confirm the glass cut-out, panel position and hinge quantity before glass fabrication.
For correct installation, use the supplied gaskets and mounting hardware. Door size and weight should be checked against the hinge quantity and load reference.
Selecting SHS690
SHS690 is suitable when a frameless shower enclosure requires a standard-duty 90° shower door hinge with a beveled corner profile.
Browse our Standard Duty Shower Door Hinges range for other mounting angles and hinge designs.
